SPECIFICATION
|
SICH-2020 (indoor)
|

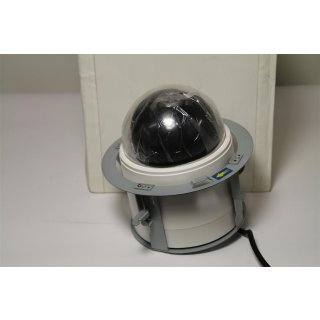

SIBH-2020 (outdoor)
|
|
Camera
|
|
Image sensor
|
1/2.8" Progressive Scan CMOS
|
|
Effective pixel
|
2230K pixels
|
|
Min. illumination
|
Color: 0.05Lux@F1.6, AGC ON; B/W: 0.01Lux@F1.6, AGC ON
|
|
White balance
|
Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
|
|
AGC
|
Auto / Manual
|
|
S / N ratio
|
≥ 50dB
|
|
Digital noise Reduction
|
3D DNR
|
|
Backlight compensation
|
HLC/BLC
|
|
Wide dynamic range
|
Digital WDR
|
|
Shutter speed
|
1 ~1/10,000s
|
|
Day & Night
|
IR Cut Filter
|
|
Digital zoom
|
16X
|
|
Privacy masking
|
2 privacy masks programmable
|
|
Focus mode
|
Auto / Semiautomatic / Manual
|
|
Lens
|
|
Focal Length
|
4.7 ~ 94mm, 20x
|
|
Zoom Speed
|
Approx 3s(Optical Wide-Tele)
|
|
Angle of View
|
58.3 ~3.2 degree (Wide-Tele)
|
|
Min. Working Distance
|
10 ~1000mm(Wide-Tele)
|
|
Aperture Range
|
F1.6 ~ F3.5
|
|
Pan and Tilt
|
|
Pan / Tilt range
|
Pan: 360° endless;Tilt: -5° ~90°(Auto Flip)
|
|
Pan / Tilt speed
|
Pan Manual Speed: 0.1° ~250°/s, Pan Preset Speed: 300°/s
Tilt Manual Speed: 0.1° ~250°/s, Tilt Preset Speed: 200°/s
|
|
Proportional zoom
|
Rotation speed can be adjusted automatically according to zoom multiples
|
|
Number of preset
|
256
|
|
Park action
|
Pattern/Pan scan/Tilt scan/Frame scan/Panorama scan/Random scan
|
|
Patrol
|
8 patrols, up to 32 presets per patrol
|
|
Power-off memory
|
Support
|
|
PTZ position display
|
Support
|
|
Preset freezing
|
Support
|
|
Scheduled task
|
Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan/Dome reboot/Self-test action/Alarm output
|
|
Input/ Output
|
|
Audio Input
|
1 Mic in/Line in interface, Line input: 2 ~ 2.4V[p-p]; output impedance: 1KΩ, ±10%
|
|
Audio Output
|
1 Audio output interface, Line level, impedance: 600Ω
|
|
Network
|
|
Ethernet
|
10Base-T / 100Base-TX, RJ45 connector
|
|
Max. Image Resolution
|
1920x1080
|
|
Frame Rate
|
50Hz: 25 fps (1920x1080), 25 fps (1280x960) , 25 fps (1280x720)
60Hz: 30 fps (1920x1080), 30 fps (1280x960) , 30 fps (1280x720)
|
|
Image Compression
|
H.264/MJPEG
|
|
Audio Compression
|
G.711u /G.711a /G.726 /MP2L2
|
|
Protocols
|
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE
|
|
Simultaneous Live View
|
Up to 6
|
|
Streams
|
Dual streams
|
|
Mini SD Memory Card
|
Micro SD slot, up to 32GB
|
|
User/Host Level
|
Up to 32users, 3 Levels: Administrator, Operator, User
|
|
Security Measures
|
User authentication (ID and PW), Host authentication (MAC address), IP address filtering
|
|
System Integration
|
|
Application programming
|
Open-ended API, support Onvif, PSIA and CGI
|
|
Web Browser
|
IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+
|
|
General
|
|
Power
|
24 VAC, max. 22W
|
24 VAC, max. 14W
|
|
Working Temperature
|
-30°C ~ 65°C, 90% or less
|
-10°C ~ 50°C, 90% or less
|
|
Protection Level
|
IP66 (outdoor dome) TVS 4,000V lightning protection,
surge protection and voltage transient protection IK10 (optional)
|
|
Dimensions
|
Φ220×305mm ( Φ8.66·×12.02·)(Outdoor)
Φ183 .4×243mm( Φ7.22·×9.56·) (Ceiling)
Φ245×236mm( Φ9.65·×9.29·) (In-ceiling)
|
|
Weight (approx.)
|
5Kg
|
